Koyo UCT212
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

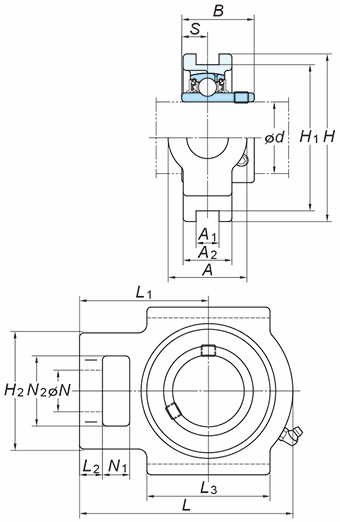

(Boundary dimensions ...etc)
d
60 mm
A
64 mm
A1
22 mm
A2
42 mm
H
146 mm
H1
130 mm
H2
102 mm
L
194 mm
L1
119 mm
L2
19 mm
L3
102 mm
N
35 mm
N1
32 mm
N2
64 mm
B
65.1 mm
S
25.4 mm
Basic load ratings : Cr
52.4 kN
Basic load ratings : C0r
36.2 kN
Fatigue load limit : Cu
1.65 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.9 kg
