Koyo UCT308
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

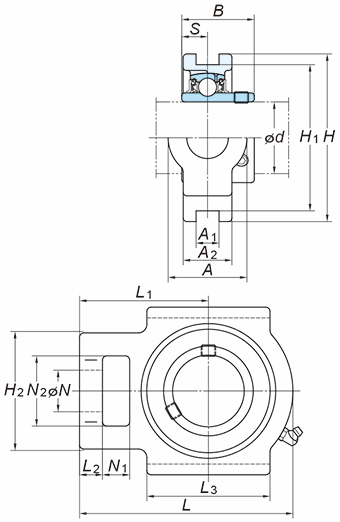

(Boundary dimensions ...etc)
d
40 mm
A
50 mm
A1
18 mm
A2
34 mm
H
124 mm
H1
112 mm
H2
83 mm
L
162 mm
L1
100 mm
L2
17 mm
L3
89 mm
N
32 mm
N1
22 mm
N2
50 mm
B
52 mm
S
19 mm
Basic load ratings : Cr
40.7 kN
Basic load ratings : C0r
24.0 kN
Fatigue load limit : Cu
1.09 kN
factor : f0
13.2
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
3.0 kg
