Koyo UCT309
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

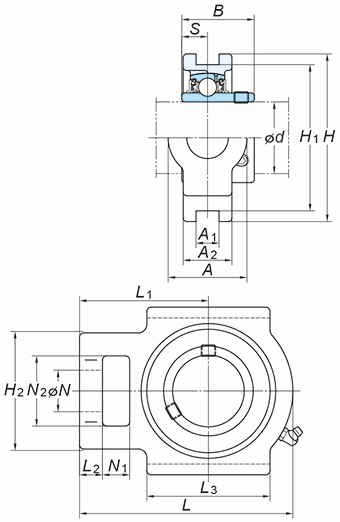

(Boundary dimensions ...etc)
d
45 mm
A
55 mm
A1
18 mm
A2
38 mm
H
138 mm
H1
125 mm
H2
90 mm
L
178 mm
L1
110 mm
L2
18 mm
L3
97 mm
N
34 mm
N1
24 mm
N2
55 mm
B
57 mm
S
22 mm
Basic load ratings : Cr
48.9 kN
Basic load ratings : C0r
29.5 kN
Fatigue load limit : Cu
1.34 kN
factor : f0
13.3
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.1 kg
