Koyo UCT310
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

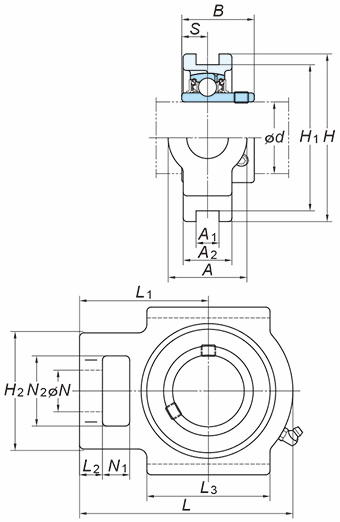

(Boundary dimensions ...etc)
d
50 mm
A
61 mm
A1
20 mm
A2
40 mm
H
151 mm
H1
140 mm
H2
98 mm
L
191 mm
L1
117 mm
L2
20 mm
L3
106 mm
N
37 mm
N1
27 mm
N2
61 mm
B
61 mm
S
22 mm
Basic load ratings : Cr
62.0 kN
Basic load ratings : C0r
38.3 kN
Fatigue load limit : Cu
1.74 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
4.9 kg
