Koyo UCT311
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

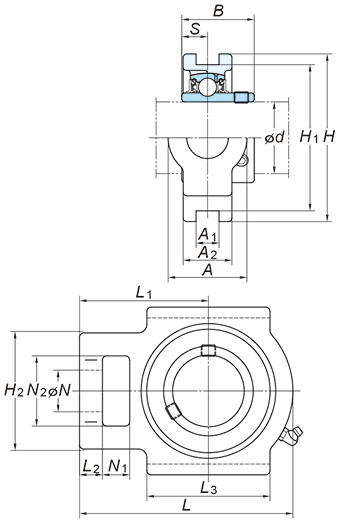

(Boundary dimensions ...etc)
d
55 mm
A
66 mm
A1
22 mm
A2
44 mm
H
163 mm
H1
150 mm
H2
105 mm
L
207 mm
L1
127 mm
L2
21 mm
L3
115 mm
N
39 mm
N1
29 mm
N2
66 mm
B
66 mm
S
25 mm
Basic load ratings : Cr
71.6 kN
Basic load ratings : C0r
45.0 kN
Fatigue load limit : Cu
2.05 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
6.1 kg
