Koyo UCT312
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

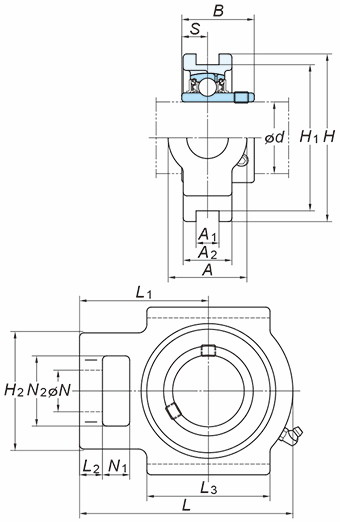

(Boundary dimensions ...etc)
d
60 mm
A
71 mm
A1
22 mm
A2
46 mm
H
178 mm
H1
160 mm
H2
113 mm
L
220 mm
L1
135 mm
L2
23 mm
L3
123 mm
N
41 mm
N1
31 mm
N2
71 mm
B
71 mm
S
26 mm
Basic load ratings : Cr
81.9 kN
Basic load ratings : C0r
52.2 kN
Fatigue load limit : Cu
2.37 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
7.6 kg
