Koyo UCT326
(BRAND)：KOYO
(Availability)：In Stock
Specifications

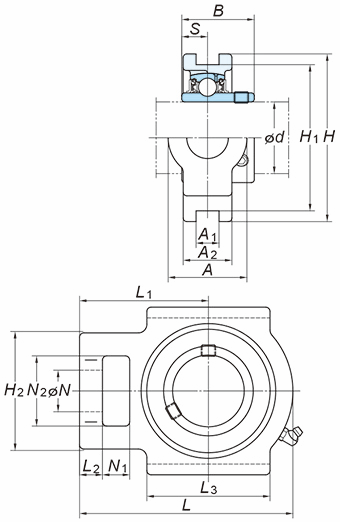

(Boundary dimensions ...etc)
d
130 mm
A
150 mm
A1
50 mm
A2
100 mm
H
385 mm
H1
350 mm
H2
220 mm
L
465 mm
L1
285 mm
L2
45 mm
L3
240 mm
N
75 mm
N1
65 mm
N2
150 mm
B
135 mm
S
54 mm
Basic load ratings : Cr
229 kN
Basic load ratings : C0r
214 kN
Fatigue load limit : Cu
6.79 kN
factor : f0
13.6
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
69.3 kg
