Koyo UKP209
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

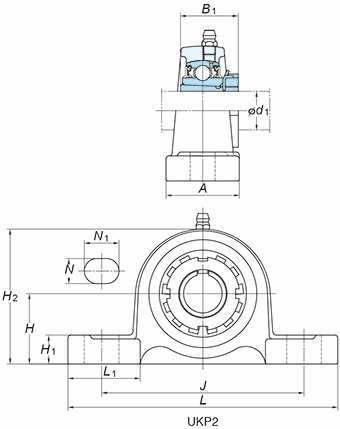

(Boundary dimensions ...etc)
d
40 mm
H
54 mm
L
190 mm
A
54 mm
J
146 mm
N
17 mm
N1
21 mm
H1
20 mm
H2
106 mm
L1
mm
B1
50 mm
Bolt size
M14
Basic load ratings : Cr
34.1 kN
Basic load ratings : C0r
21.3 kN
Fatigue load limit : Cu
0.968 kN
factor : f0
14.0
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.3 kg
