Koyo UKP211
(BRAND)：KOYO
(Availability)：In Stock
Specifications

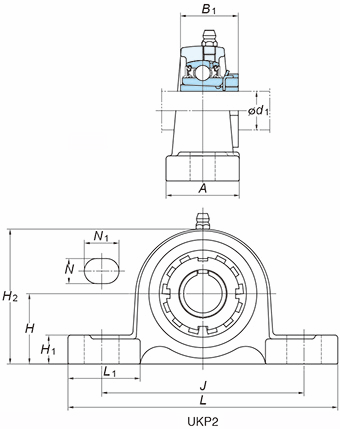

(Boundary dimensions ...etc)
d
50 mm
H
63.5 mm
L
219 mm
A
60 mm
J
171 mm
N
20 mm
N1
22 mm
H1
23 mm
H2
125 mm
L1
mm
B1
59 mm
Bolt size
M16
Basic load ratings : Cr
43.4 kN
Basic load ratings : C0r
29.4 kN
Fatigue load limit : Cu
1.34 kN
factor : f0
14.4
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
3.7 kg
