Koyo UKP305
(BRAND)：KOYO
(Availability)：In Stock
Specifications

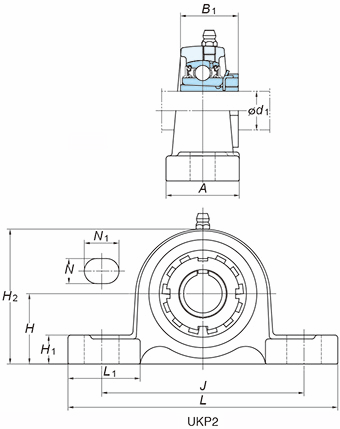

(Boundary dimensions ...etc)
d
20 mm
H
45 mm
L
175 mm
A
45 mm
J
132 mm
N
17 mm
N1
20 mm
H1
16 mm
H2
85 mm
L1
mm
B1
35 mm
Bolt size
M14
Basic load ratings : Cr
21.2 kN
Basic load ratings : C0r
10.9 kN
Fatigue load limit : Cu
0.495 kN
factor : f0
12.6
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
1.7 kg
