Koyo UKP306
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

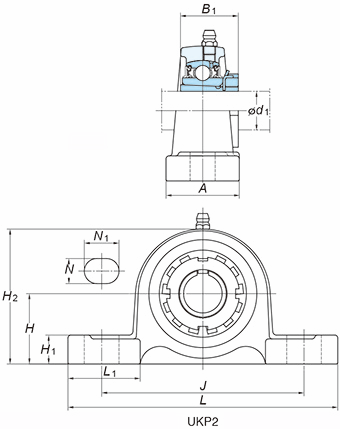

(Boundary dimensions ...etc)
d
25 mm
H
50 mm
L
180 mm
A
50 mm
J
140 mm
N
17 mm
N1
20 mm
H1
17 mm
H2
95 mm
L1
mm
B1
38 mm
Bolt size
M14
Basic load ratings : Cr
26.7 kN
Basic load ratings : C0r
15.0 kN
Fatigue load limit : Cu
0.682 kN
factor : f0
13.3
Nipple size
1/4-28UNF
Mounting dimensions
Refer.
(Refer.)Unit mass
2.3 kg
