Koyo UKP309
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

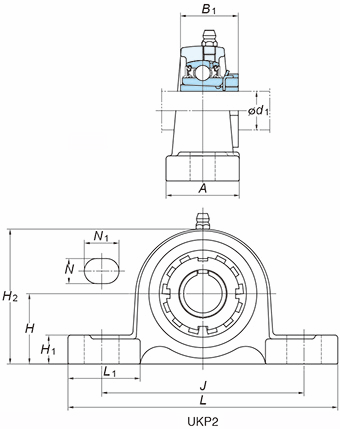

(Boundary dimensions ...etc)
d
40 mm
H
67 mm
L
245 mm
A
67 mm
J
190 mm
N
20 mm
N1
30 mm
H1
21 mm
H2
132 mm
L1
mm
B1
50 mm
Bolt size
M16
Basic load ratings : Cr
48.9 kN
Basic load ratings : C0r
29.5 kN
Fatigue load limit : Cu
1.34 kN
factor : f0
13.3
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
5.0 kg
