Koyo UKP315
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

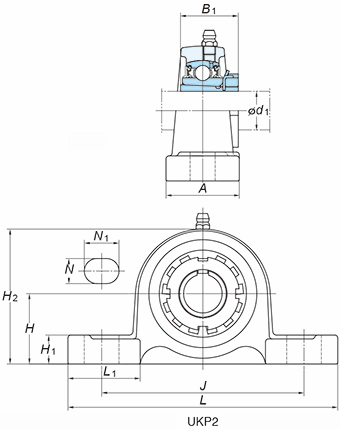

(Boundary dimensions ...etc)
d
65 mm
H
100 mm
L
380 mm
A
100 mm
J
290 mm
N
27 mm
N1
40 mm
H1
35 mm
H2
198 mm
L1
mm
B1
73 mm
Bolt size
M22
Basic load ratings : Cr
113 kN
Basic load ratings : C0r
77.2 kN
Fatigue load limit : Cu
3.24 kN
factor : f0
13.2
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
14.9 kg
