Koyo UKP324
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

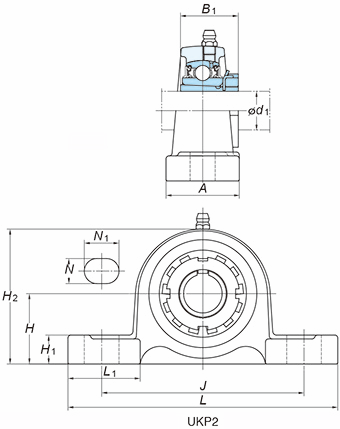

(Boundary dimensions ...etc)
d
110 mm
H
160 mm
L
570 mm
A
140 mm
J
450 mm
N
40 mm
N1
55 mm
H1
50 mm
H2
316 mm
L1
mm
B1
112 mm
Bolt size
M33
Basic load ratings : Cr
207 kN
Basic load ratings : C0r
185 kN
Fatigue load limit : Cu
6.10 kN
factor : f0
13.5
Nipple size
R1/8
Mounting dimensions
Refer.
(Refer.)Unit mass
55.7 kg
