Koyo WF602 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

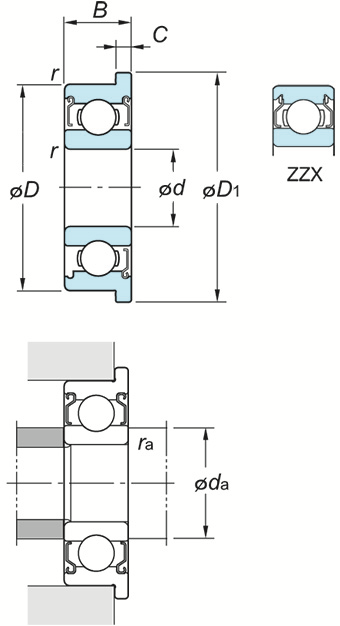

(Boundary dimensions ...etc)
d
2 mm
D
7 mm
B
3.5 mm
r(min.)
0.15 mm
Basic load ratings : Cr
0.48 kN
Basic load ratings : C0r
0.13 kN
Fatigue load limit : Cu
0.003 kN
factor : f0
12.6
Limiting speeds(Grease lub.)
67000 min-1
Limiting speeds(Oil lub.)
- min-1
Dimensions of flange D1
8.5 mm
Dimensions of flange C1
0.9 mm
Mounting dimensions
da(min.)
3.2 mm
ra(max.)
0.15 mm
Refer.
(Refer.)Mass
0.6 g
