Koyo WJ-182420
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

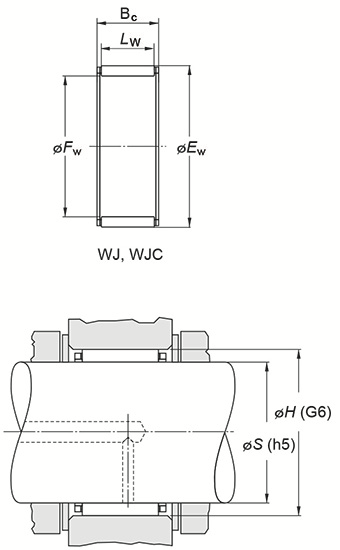

(Boundary dimensions ...etc)
Fw
28.575 mm
Ew
38.100 mm
Bc
31.75 mm
Basic load ratings : Cr
52.0 kN
Basic load ratings : C0r
74.7 kN
Fatigue load limit : Cu
11.7 kN
Limiting speeds(Grease lub.)
10000 min-1
Limiting speeds(Oil lub.)
16000 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
28.575 mm
Shaft dia. : h5 (min.)
28.565 mm
Housing bore dia : G6(max.)
38.125 mm
Housing bore dia : G6(min.)
38.110 mm
Refer.
(Refer.)Mass
0.065 kg
