Koyo WJ-202616
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

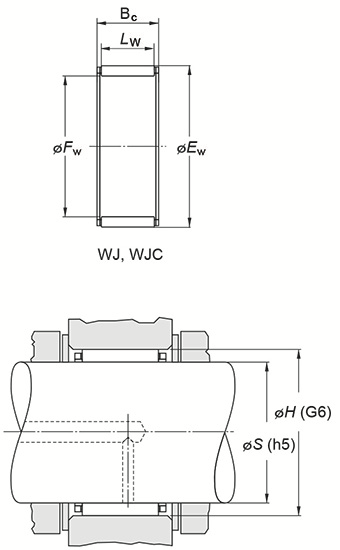

(Boundary dimensions ...etc)
Fw
31.750 mm
Ew
41.275 mm
Bc
25.40 mm
Basic load ratings : Cr
44.1 kN
Basic load ratings : C0r
62.3 kN
Fatigue load limit : Cu
9.80 kN
Limiting speeds(Grease lub.)
9300 min-1
Limiting speeds(Oil lub.)
14000 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
31.750 mm
Shaft dia. : h5 (min.)
31.740 mm
Housing bore dia : G6(max.)
41.300 mm
Housing bore dia : G6(min.)
41.285 mm
Refer.
(Refer.)Mass
0.061 kg
