Koyo WJ-222820
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

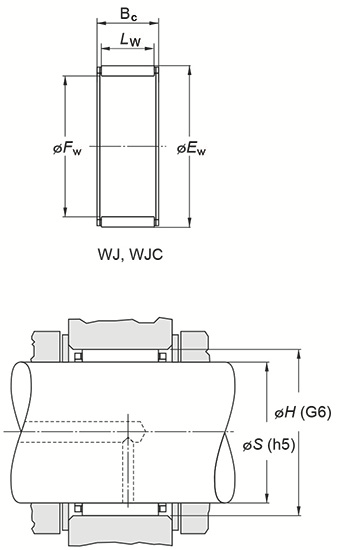

(Boundary dimensions ...etc)
Fw
34.925 mm
Ew
44.450 mm
Bc
31.75 mm
Basic load ratings : Cr
56.0 kN
Basic load ratings : C0r
87.2 kN
Fatigue load limit : Cu
13.6 kN
Limiting speeds(Grease lub.)
8300 min-1
Limiting speeds(Oil lub.)
13000 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
34.925 mm
Shaft dia. : h5 (min.)
34.915 mm
Housing bore dia : G6(max.)
44.475 mm
Housing bore dia : G6(min.)
44.460 mm
Refer.
(Refer.)Mass
0.077 kg
