Koyo WJ-243016
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

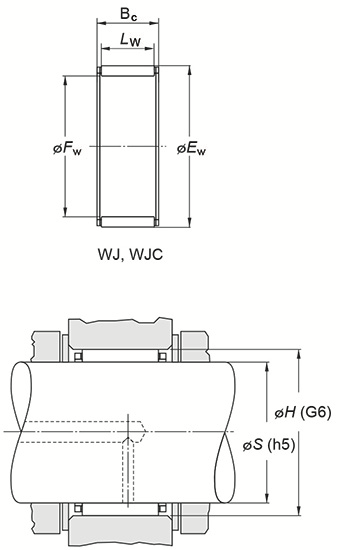

(Boundary dimensions ...etc)
Fw
38.100 mm
Ew
47.625 mm
Bc
25.40 mm
Basic load ratings : Cr
47.2 kN
Basic load ratings : C0r
71.6 kN
Fatigue load limit : Cu
11.3 kN
Limiting speeds(Grease lub.)
7600 min-1
Limiting speeds(Oil lub.)
12000 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
38.100 mm
Shaft dia. : h5 (min.)
38.090 mm
Housing bore dia : G6(max.)
47.650 mm
Housing bore dia : G6(min.)
47.635 mm
Refer.
(Refer.)Mass
0.078 kg
