Koyo WJ-323812
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

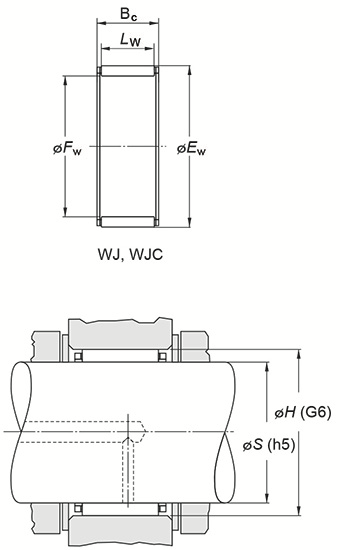

(Boundary dimensions ...etc)
Fw
50.800 mm
Ew
60.325 mm
Bc
19.05 mm
Basic load ratings : Cr
42.8 kN
Basic load ratings : C0r
69.0 kN
Fatigue load limit : Cu
11.1 kN
Limiting speeds(Grease lub.)
5600 min-1
Limiting speeds(Oil lub.)
8600 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
50.800 mm
Shaft dia. : h5 (min.)
50.787 mm
Housing bore dia : G6(max.)
60.353 mm
Housing bore dia : G6(min.)
60.335 mm
Refer.
(Refer.)Mass
0.065 kg
