Koyo WJ-364220
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

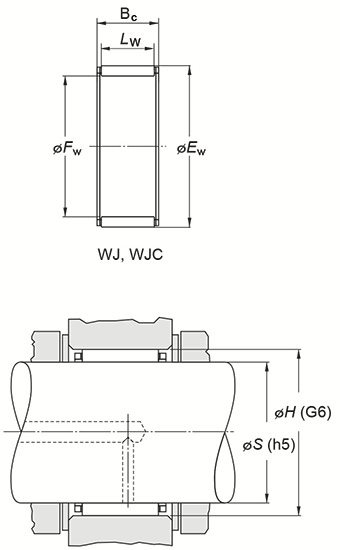

(Boundary dimensions ...etc)
Fw
57.150 mm
Ew
66.675 mm
Bc
31.75 mm
Basic load ratings : Cr
67.6 kN
Basic load ratings : C0r
128 kN
Fatigue load limit : Cu
20.1 kN
Limiting speeds(Grease lub.)
4900 min-1
Limiting speeds(Oil lub.)
7500 min-1
Mounting dimensions
Shaft dia. : h5 (max.)
57.150 mm
Shaft dia. : h5 (min.)
57.137 mm
Housing bore dia : G6(max.)
66.703 mm
Housing bore dia : G6(min.)
66.685 mm
Refer.
(Refer.)Mass
0.120 kg
