Koyo WMLF2005 ZZ
(BRAND)：KOYO
(Availability)：In Stock
Specifications

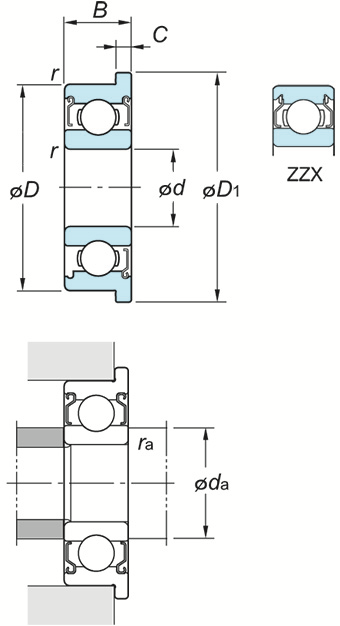

(Boundary dimensions ...etc)
d
2 mm
D
5 mm
B
2.5 mm
r(min.)
0.08 mm
Basic load ratings : Cr
0.21 kN
Basic load ratings : C0r
0.05 kN
Fatigue load limit : Cu
0.001 kN
factor : f0
12.9
Limiting speeds(Grease lub.)
99000 min-1
Limiting speeds(Oil lub.)
- min-1
Dimensions of flange D1
6.2 mm
Dimensions of flange C1
0.6 mm
Mounting dimensions
da(min.)
2.8 mm
ra(max.)
0.07 mm
Refer.
(Refer.)Mass
0.2 g
