MCGILL CCFH-2 3/4-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

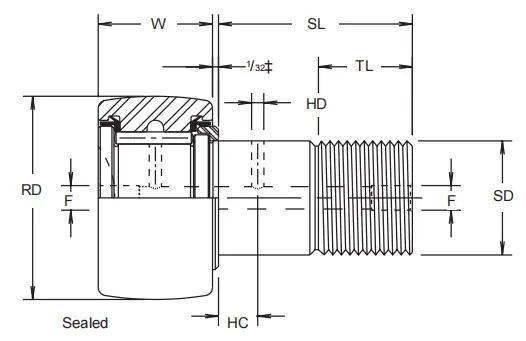

Description
ROLLER DIA.(RD)
2.750
ROLLER WIDTH (W)
1.500
STUD DIA. (SD)
1.250
STUD L'GTH.(SL)
2 1/4
MIN. THR'D L'GTH.(TL)
1 1/8
FINE THR'DS.
1 1/4-12
HOLE CENTER(HC)
9/16
HOLE DIA.(HD)
1/8
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
1 11/16
HOUSING BORE DIA.
1.2503
***RECOM. CLAMPING TORQUE LBS.-IN.
3450
MAX. STATIC CAPACITY LBS.
32900
BASIC DYN. RATING LBS.
11720
