MCGILL CF-10-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

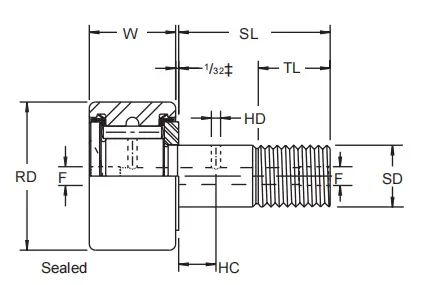

ROLLER DIA.(RD)
10.000
ROLLER WIDTH (W)
5.250**
STUD DIA. (SD)
4.250
STUD L'GTH.(SL)
10
MIN. THR'D L'GTH.(TL)
4 3/4
FINE THR'DS.
3 1/2-4•
HOLE CENTER(HC)
-
HOLE DIA.(HD)
-
LUB. FIT- TING SIZE (F)*
1/4
MIN. BOSS DIA.
5 59/64
HOUSING BORE DIA.
4.2503
***RECOM. CLAMPING TORQUE LBS.-IN.
5000
MAX. STATIC CAPACITY LBS.
215565
BASIC DYN. RATING LBS.
131545
