MCGILL CF-3-B
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

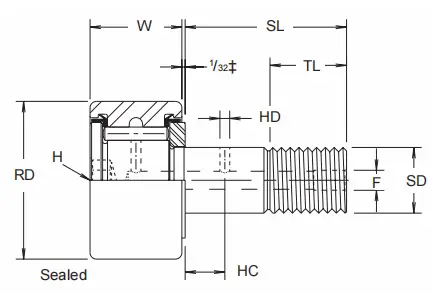

Description
ROLLER DIA.(RD)
3.000
ROLLER WIDTH (W)
1.750
STUD DIA. (SD)
1.250
STUD L'GTH.(SL)
2 1/2
MIN. THR'D L'GTH.(TL)
1 1/4
FINE THR'DS.
1 1/4-12
HOLE CENTER(HC)
5/8
HOLE DIA.(HD)
1/8
LUB. FIT- TING SIZE (F)*
① 1/4
MIN. BOSS DIA.
1 3/4
HOUSING BORE DIA.
1.2503
***RECOM. CLAMPING TORQUE LBS.-IN.
3450
MAX. STATIC CAPACITY LBS.
24910
BASIC DYN. RATING LBS.
15720
