MCGILL CF-5/8-N-SB
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

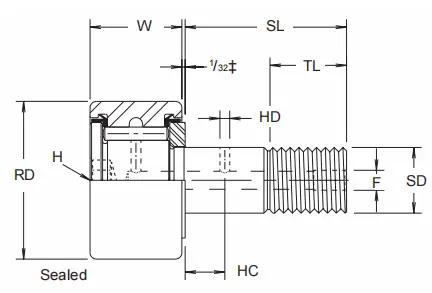

Description
ROLLER DIA.(RD)
.625
ROLLER WIDTH (W)
.406
STUD DIA. (SD)
.250
STUD L'GTH.(SL)
5/8
MIN. THR'D L'GTH.(TL)
5/16
FINE THR'DS.
1/4-28
HOLE CENTER(HC)
-
HOLE DIA.(HD)
-
LUB. FIT- TING SIZE (F)*
-
MIN. BOSS DIA.
23/64
HOUSING BORE DIA.
.2503
***RECOM. CLAMPING TORQUE LBS.-IN.
35
MAX. STATIC CAPACITY LBS.
1085
BASIC DYN. RATING LBS.
930
