MCGILL CFH-1/2
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

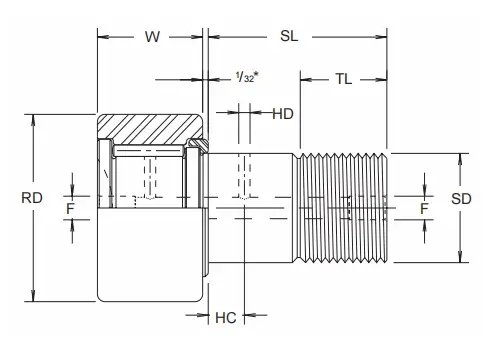

ROLLER DIA.(RD)
.500
ROLLER WIDTH (W)
.375
STUD DIA. (SD)
.250
STUD L'GTH.(SL)
5/8
MIN. THR'D L'GTH.(TL)
1/4
FINE THR'DS.
1/4-28
HOLE CENTER(HC)
-
HOLE DIA.(HD)
-
LUB. FIT- TING SIZE (F)*
1/8*
MIN. BOSS DIA.
13/32
HOUSING BORE DIA.
.2503
***RECOM. CLAMPING TORQUE LBS.-IN.
35
MAX. STATIC CAPACITY LBS.
1580
BASIC DYN. RATING LBS.
680
