MCGILL GR-16-N
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

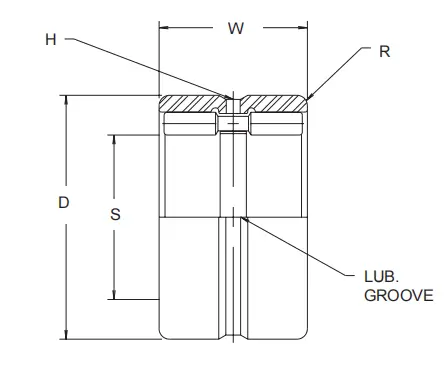

Description
S SHAFT DIA.
1
D*
1.5
W
0.75
H
5/64
R MAX. FILLET FOR HOUSING
0.04
HSG. BORE DIA. ROTATING HOUSING
1.4997
HSG. BORE DIA. STATIONARY HOUSING
1.5007
STATIC LOAD RATING (LBS.)
9600
BASIC DYNAMIC RATING (LBS.)
4350
