MCGILL MCF-30
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

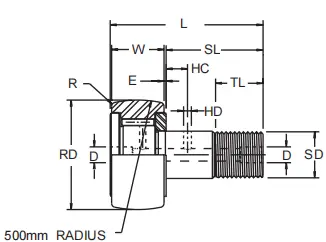

Description
ROLLER DIA. RD NOM. mm
30
ROLLER WIDTH W mm
14
STUD DIA. SD NOM. mm
12
STUD L'GTH. SL NOM. mm
25
OVERALL LENGTH L NOM. mm
40
ENDPLATE EXTENSIONE NOM. mm
0.6
THREAD mm
0.6
THREAD LENGTH TL MIN. mm
M12x1.5
OIL HOLE (HC) NOM. mm
6
OIL HOLE (HD) NOM. mm
3
REAMED HOLE mm
D
NOM.
6
CORNER RADIUS R mm
1
CLAMPING DIA. MIN. mm
19
CLAMPING TORQUE MAX mm
22
MASS kg.
0.089
