MCGILL MCF-40
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

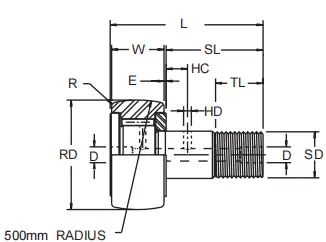

Description
ROLLER DIA. RD NOM. mm
40
ROLLER WIDTH W mm
20
STUD DIA. SD NOM. mm
18
STUD L'GTH. SL NOM. mm
36.5
OVERALL LENGTH L NOM. mm
58
ENDPLATE EXTENSIONE NOM. mm
0.8
THREAD mm
0.8
THREAD LENGTH TL MIN. mm
M18x1.5
OIL HOLE (HC) NOM. mm
8
OIL HOLE (HD) NOM. mm
3
REAMED HOLE mm
D
NOM.
6
CORNER RADIUS R mm
1.5
CLAMPING DIA. MIN. mm
27
CLAMPING TORQUE MAX mm
85
MASS kg.
0.248
