MCGILL MCYRR-8
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

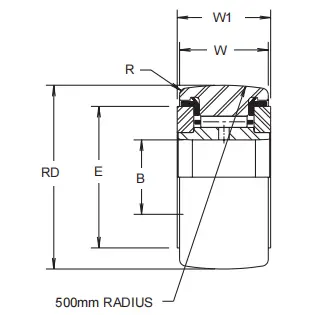

BORE DIA. B MAX. mm
8
BORE DIA. B MIN. mm
7.992
ROLLER DIA. RD NOM. mm
24
ROLLER WIDTH W mm
14
WIDTH W1 MAX. mm
15
WIDTH W1 MIN. mm
14.82
CORNER RADIUS R mm
0.5
LOOSE FIT FOR LIGHT LOADS g6 MAX.
7.995
LOOSE FIT FOR LIGHT LOADS g6 MIN.
7.986
LIGHT TRANSITION FIT FOR MEDIUM LOADS h6 MAX.
8
LIGHT TRANSITION FIT FOR MEDIUM LOADS h6 MIN.
7.991
CLAMPING DIA. E MIN. mm
16
MASS kg.
0.04
