MCGILL MI-16-N
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

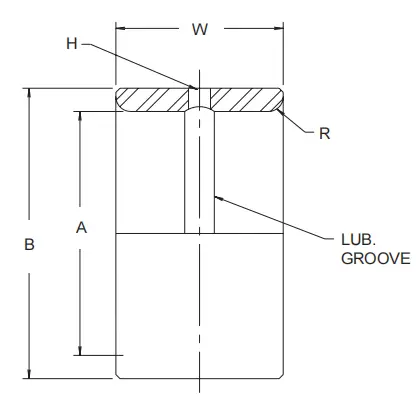

A BORE DIA. NOM.
1.0000
A BORE DIA. TOL. +.0000
-.0005
B INNER O.D. NOM.
1.2491
B INNER O.D. NOM. TOL. +.0000
-.0006
W WIDTH +.000 -.005
1.010
H HOLE DIA.
1/8
R MAX. FILLET FOR SHAFT
.040
