MCGILL MR-16-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

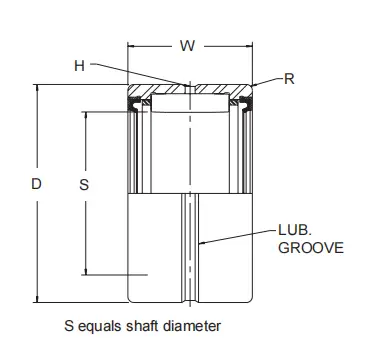

S SHAFT DIA.
1.0000
D
1.5000
W
1.000
H HOLE DIA.
5/64
R MAX. FILLET FOR HOUSING
.040
HSG. BORE DIA. ROTATING HOUSING
1.4997
HSG. BORE DIA. STATIONARY HOUSING
1.5007
STATIC LOAD RATING (LBS.)
7100
7100
5840
