MCGILL SB-22219
BEARING
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

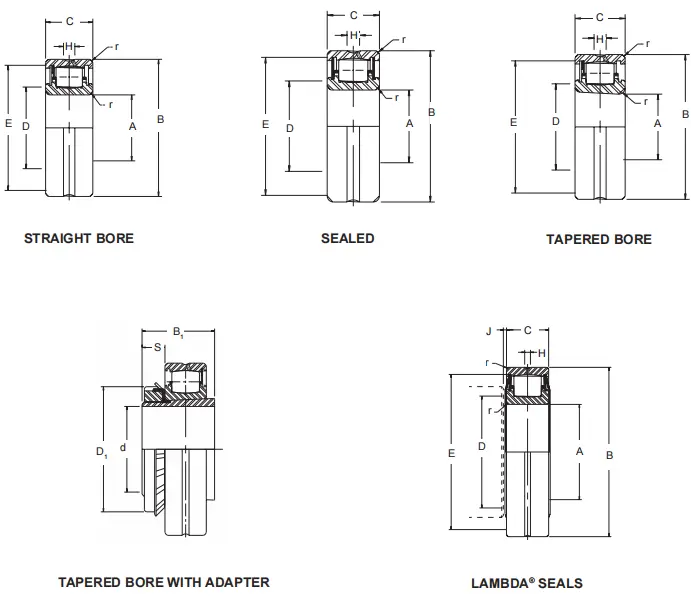

BORE A MM
95
BORE A INCH
3.7402
OUTSIDE DIAMETER B MM
170
OUTSIDE DIAMETER INCH
6.6929
WIDTH C MM
43
WIDTH C INCH
1.6929
SHOULDER DIMENSIONS r (1)
.079
SHOULDER DIMENSIONS D
4 3/16
SHOULDER DIMENSIONS E
6 1/16
SHOULDER DIMENSIONS H (2)
21/64
SHOULDER DIMENSIONS J MIN.
1/8
LIM. SPEED (3) RPM
2650
ABMA BASIC DYNAMIC RATING POUNDS
70900
ADAPTER NUMBER (4)
-
ADAPTER DIMENSIONS SHAFT DIAM.
-
ADAPTER DIMENSIONS B1
-
ADAPTER DIMENSIONS S
-
ADAPTER DIMENSIONS D1
-
BRG. WT. LBS.
9.20
