MCGILL SB-22220
BEARING
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description
BORE A MM
100
BORE A INCH
3.9370
OUTSIDE DIAMETER B MM
180
OUTSIDE DIAMETER INCH
7.0866
WIDTH C MM
46
WIDTH C INCH
1.8110

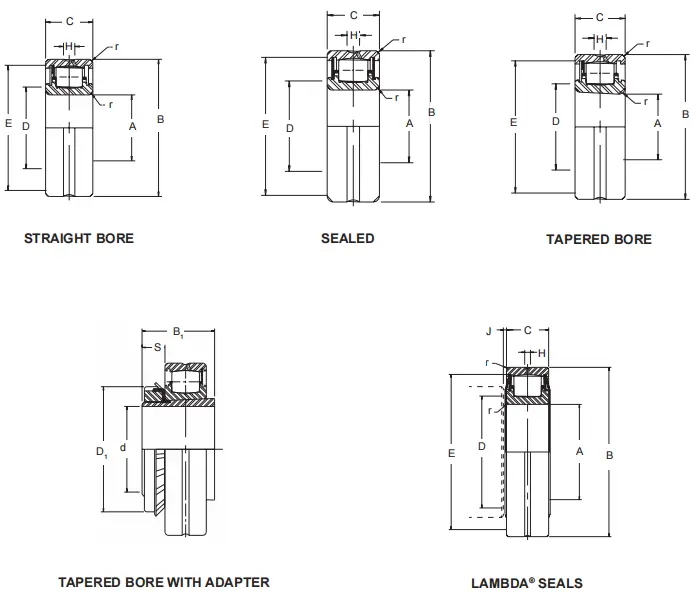

SHOULDER DIMENSIONS r (1)
.079
SHOULDER DIMENSIONS D
4 7/16
SHOULDER DIMENSIONS E
6 3/8
SHOULDER DIMENSIONS H (2)
21/64
SHOULDER DIMENSIONS J MIN.
1/8
LIM. SPEED (3) RPM
2500
ABMA BASIC DYNAMIC RATING POUNDS
77700
ADAPTER NUMBER (4)
SNW 20
ADAPTER DIMENSIONS SHAFT DIAM.
3 7/16
ADAPTER DIMENSIONS B1
2 7/8
ADAPTER DIMENSIONS S
27/32
ADAPTER DIMENSIONS D1
5 3/16
BRG. WT. LBS.
11.10
