MCGILL VCF-3 1/2
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

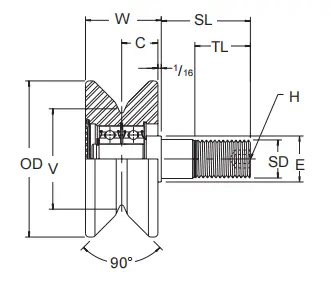

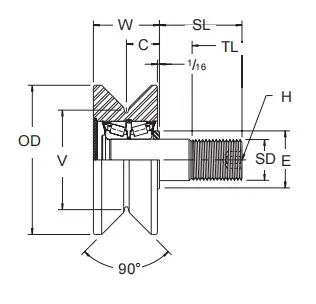

Description
OUTSIDE ROLLER DIA.
(OD)
3 1/2
POINT DIA. (V)
2 1/4
WIDTH (W)
1 11/16
GROOVE CENTER (C)
7/8
STUD DIA. (SD)
.875
MIN. THREAD LENGTH (TL)
1 1/8
FINE THREADS
7/8-14
STUD LENGTH (SL)
2
HEX SOCKET
3/8
SHOULDER OR ENDPLATE DIA.
1
RADIAL BASIC DYNAMIC RATING (LBS.)
3490
DYNAMIC THRUST LOAD* RATING (LBS.)
1830
MAX. STATIC CAPACITY (LBS.)
2000
