NSK 07098/07205

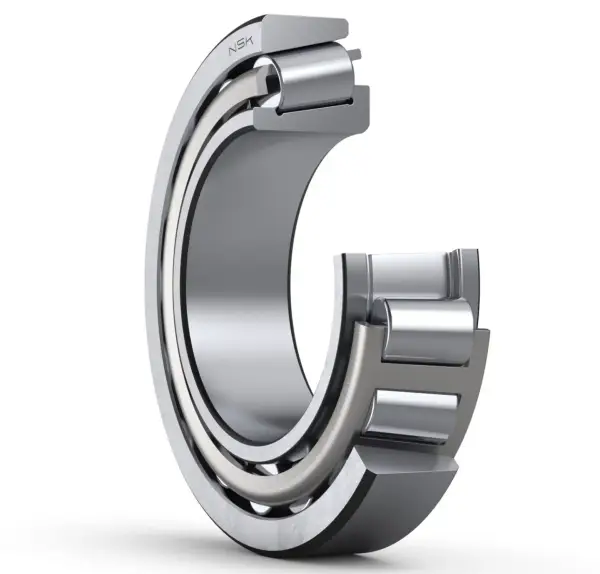

Inch Series Tapered Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
07098/07205

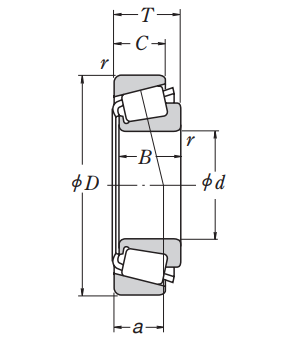

Boundary Dimensions
d
24.981
mm
Bore diameter
D
52.001
mm
Outside diameter
T
15.011
mm
Total width
B
14.26
mm
Width of inner ring
C
12.7
mm
Width of outer ring
Cup r (min.)
2
mm
Chamfer dimension of outer ring (Cup)
Cone r (min.)
1.5
mm
Chamfer dimension of inner ring (Cone)
Basic Load Ratings
Cr
32000
N
Basic dynamic load rating
C0r
27900
N
Basic static load rating
Speeds
Grease
7500
min-1
Grease lubrication
Oil (Oil-bath)
10000
min-1
Oil-bath lubrication
a
12.1
mm
Effective load center

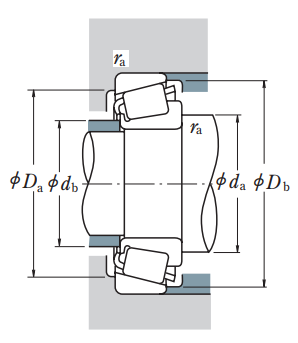

Dimensions
da
31
mm
Diameter of shaft abutment
Da
44.5
mm
Diameter of housing abutment
db
29
mm
Diameter of shaft abutment
Db
48
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet of inner ring
ra (max.)
2
mm
Radius of shaft or housing fillet of outer ring
