NSK 10BSR02S
ROBUST Series Ultra High-Speed Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
10BSR02S

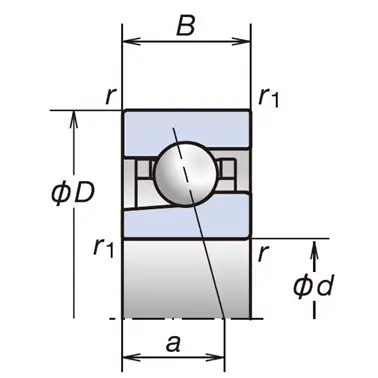

Boundary Dimensions
BSR: 15°
Bearing Type
d
10
mm
Bore diameter
D
30
mm
Outside diameter
B
9
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.3
mm
Chamfer Dimension
Basic Load Ratings
Cr
4.85
kN
Basic Dynamic Load Rating
C0r
1.48
kN
Basic Static Load Rating
Speeds
Grease
80000
min-1
Limiting Speed
Oil (Oil-air)
110000
min-1
Limiting Speed
Dimensions
15°
Contact Angle
a
7.20
mm
Effective Load Center
Abutment and Fillet Dimensions
da(min.)
15
mm
Diameter of Shaft Abutment
Da(max.)
25
mm
Diameter of Housing Abutment
Db(max.)
27.5
mm
Diameter of Housing Abutment
ra(max.)
0.6
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.3
mm
Radius of Shaft or Housing Fillet
