NSK 200TAC20D+L
Double-Direction Angular Contact Thrust Ball Bearings (NSKTAC D Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
200TAC20D+L
Designations
200TAC20D+L
Boundary Dimensions
d
200
mm
Bore diameter
D
310
mm
Outside diameter
T
132
mm
Inner Ring Width
C
66
mm
Outer Ring Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
395
kN
Basic Dynamic Load Rating
C0a
1180
kN
Basic Static Load Rating
Speeds
Grease
1800
min-1
Limiting Speed (C6-Preload)
Oil (Oil-air)
2000
min-1
Limiting Speed (C6-Preload)
Grease
1600
min-1
Limiting Speed (C7-Preload)
Oil (Oil-air)
1700
min-1
Limiting Speed (C7-Preload)
Grease
1300
min-1
Limiting Speed (C8-Preload)
Oil (Oil-air)
1400
min-1
Limiting Speed (C8-Preload)
Dimensions
60°
Contact Angle

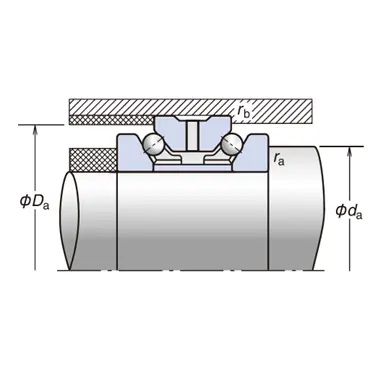

Abutment and Fillet Dimensions
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
da
245
mm
Diameter of Shaft Abutment
Da
291
mm
Diameter of Housing Abutment
