NSK 200TAC29D+L
Double-Direction Angular Contact Thrust Ball Bearings (NSKTAC D Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
200TAC29D+L
Designations
200TAC29D+L

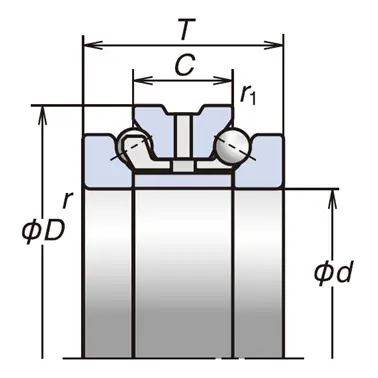

Boundary Dimensions
d
200
mm
Bore diameter
D
280
mm
Outside diameter
T
96
mm
Inner Ring Width
C
48
mm
Outer Ring Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
257
kN
Basic Dynamic Load Rating
C0a
855
kN
Basic Static Load Rating
Speeds
Grease
1900
min-1
Limiting Speed (C6-Preload)
Oil (Oil-air)
2100
min-1
Limiting Speed (C6-Preload)
Grease
1700
min-1
Limiting Speed (C7-Preload)
Oil (Oil-air)
1800
min-1
Limiting Speed (C7-Preload)
Grease
1400
min-1
Limiting Speed (C8-Preload)
Oil (Oil-air)
1500
min-1
Limiting Speed (C8-Preload)
Dimensions
60°
Contact Angle

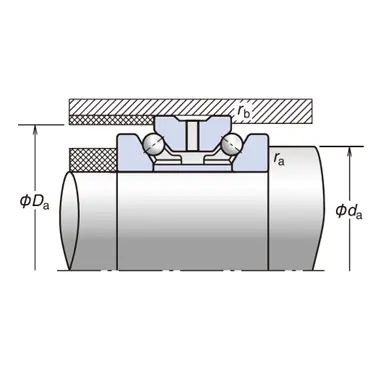

Abutment and Fillet Dimensions
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
da
230
mm
Diameter of Shaft Abutment
Da
267
mm
Diameter of Housing Abutment
