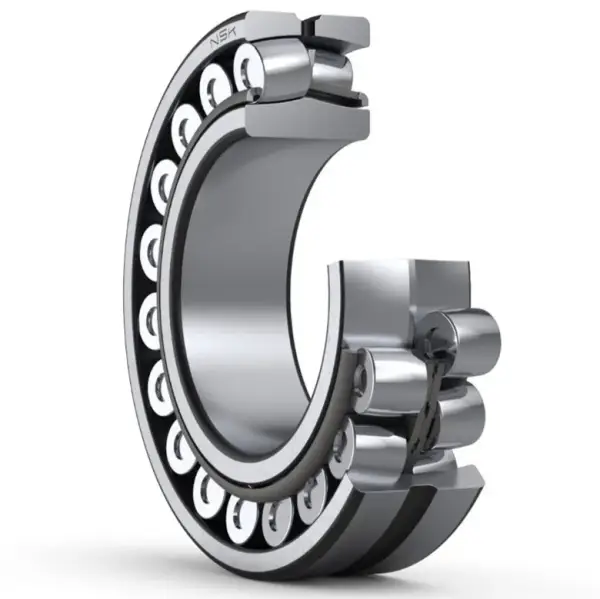

NSK 21309EAE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
21309EAE4

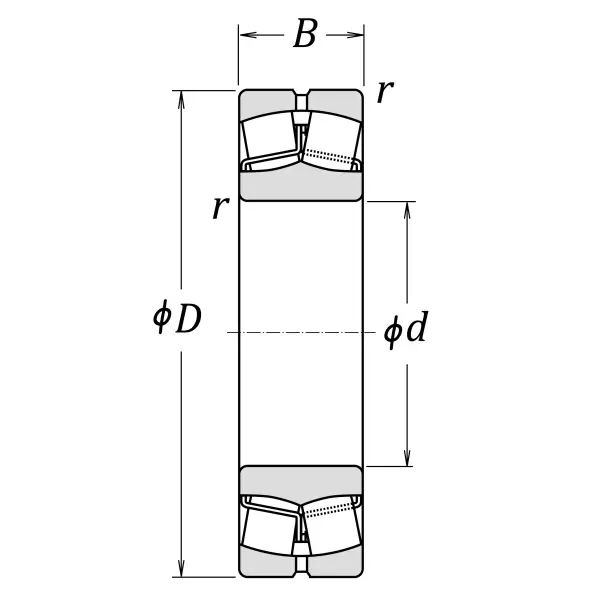

Boundary Dimensions
d
45
mm
Bore diameter
D
100
mm
Outside diameter
B
25
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
149000
N
Basic dynamic load rating
C0r
144000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
6000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
9000
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
5000
min-1
Grease lubrication
Oil (Oil-bath)
6300
min-1
Oil-bath lubrication
da (min.)
54
mm
Diameter of shaft abutment
da (max.)
65
mm
Diameter of shaft abutment
Da (min.)
89
mm
Diameter of housing abutment
Da (max.)
91
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.23
Constant
Y2
4.3
Axial load Factors
Y3
2.9
Axial load Factors
Y0
2.8
Axial load Factors
