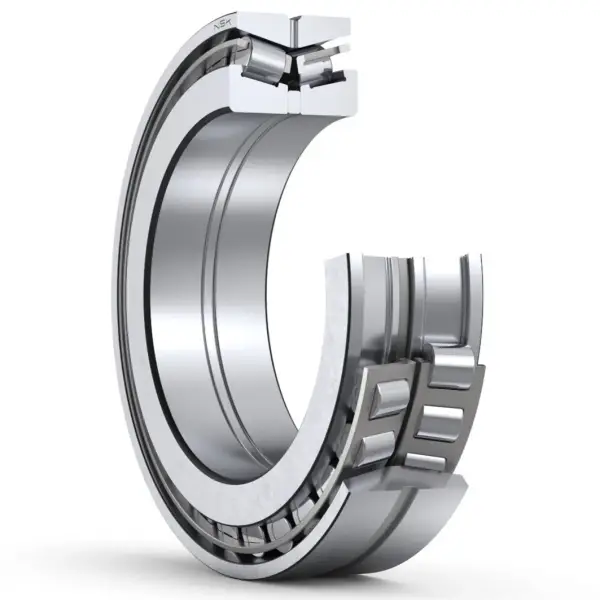

NSK 220KBE30+L
Double-Row Tapered Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
220KBE30+L
Boundary Dimensions
d
220
mm
Bore diameter
D
340
mm
Outside diameter
B2
90
mm
Total width
C
80
mm
Width of outer ring
r (min.)
4
mm
Chamfer dimension
r1 (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
855000
N
Basic dynamic load rating
C0r
1280000
N
Basic static load rating
Speeds
Grease
750
min-1
Grease lubrication
Oil (Oil-bath)
1000
min-1
Oil-bath lubrication

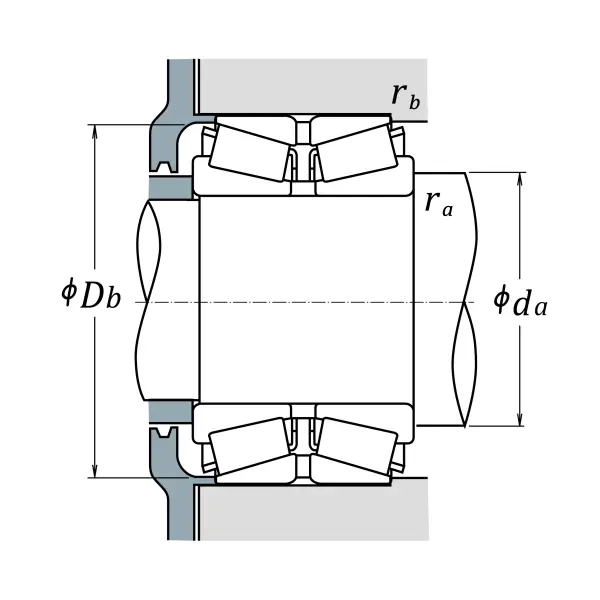

da (min.)
241
mm
Diameter of shaft abutment
rb (max.)
1
mm
Radius of housing fillet of outer ring
Db (min.)
324
mm
Minimum width of space required in housing on large side face
ra (max.)
2.5
mm
Radius of shaft fillet of inner ring
Abutment and Fillet Dimensions
e
0.4
Constant
Y2
2.5
Axial load Factors
Y3
1.7
Axial load Factors
Y0
1.6
Axial load Factors
