NSK 220TAC29D+L
Double-Direction Angular Contact Thrust Ball Bearings (NSKTAC D Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
220TAC29D+L
Designations
220TAC29D+L
Boundary Dimensions
d
220
mm
Bore diameter
D
300
mm
Outside diameter
T
96
mm
Inner Ring Width
C
48
mm
Outer Ring Width
r(min.)
2.1
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
265
kN
Basic Dynamic Load Rating
C0a
930
kN
Basic Static Load Rating
Speeds
Grease
1800
min-1
Limiting Speed (C6-Preload)
Oil (Oil-air)
2000
min-1
Limiting Speed (C6-Preload)
Grease
1600
min-1
Limiting Speed (C7-Preload)
Oil (Oil-air)
1700
min-1
Limiting Speed (C7-Preload)
Grease
1300
min-1
Limiting Speed (C8-Preload)
Oil (Oil-air)
1400
min-1
Limiting Speed (C8-Preload)
Dimensions
60°
Contact Angle

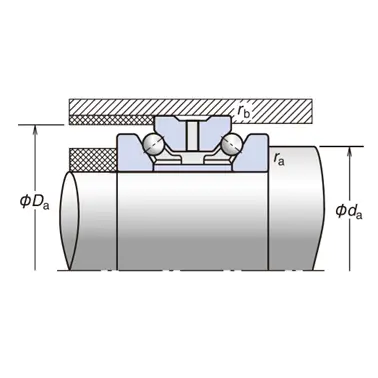

Abutment and Fillet Dimensions
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
da
250
mm
Diameter of Shaft Abutment
Da
287
mm
Diameter of Housing Abutment
