NSK 22214EAE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22214EAE4

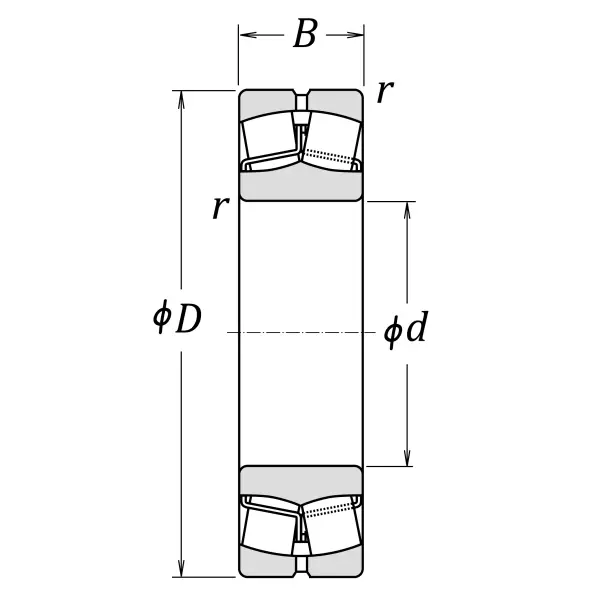

Boundary Dimensions
d
70
mm
Bore diameter
D
125
mm
Outside diameter
B
31
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
225000
N
Basic dynamic load rating
C0r
232000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
4500
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
7100
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
4000
min-1
Grease lubrication
Oil (Oil-bath)
5300
min-1
Oil-bath lubrication
da (min.)
79
mm
Diameter of shaft abutment
da (max.)
84
mm
Diameter of shaft abutment
Da (min.)
111
mm
Diameter of housing abutment
Da (max.)
116
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.23
Constant
Y2
4.3
Axial load Factors
Y3
2.9
Axial load Factors
Y0
2.8
Axial load Factors
