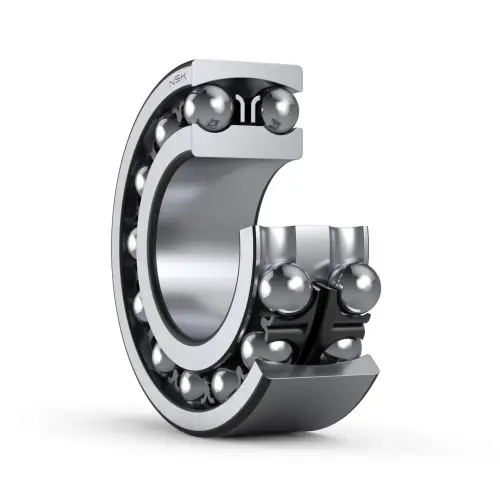

NSK 2222K
Self-Aligning Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
2222K

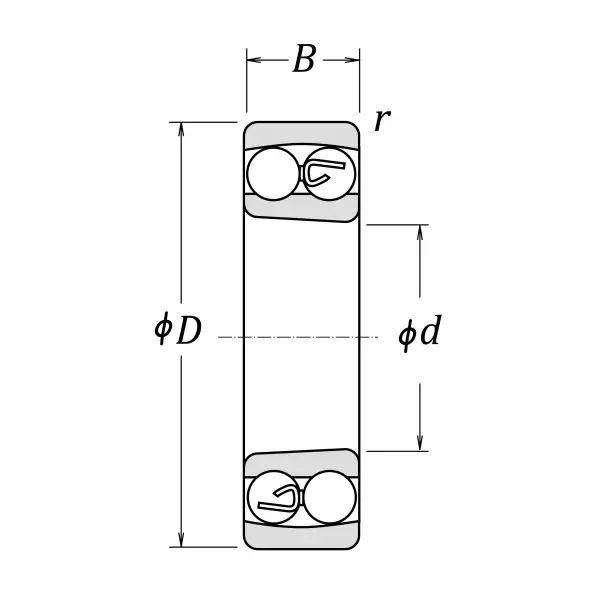

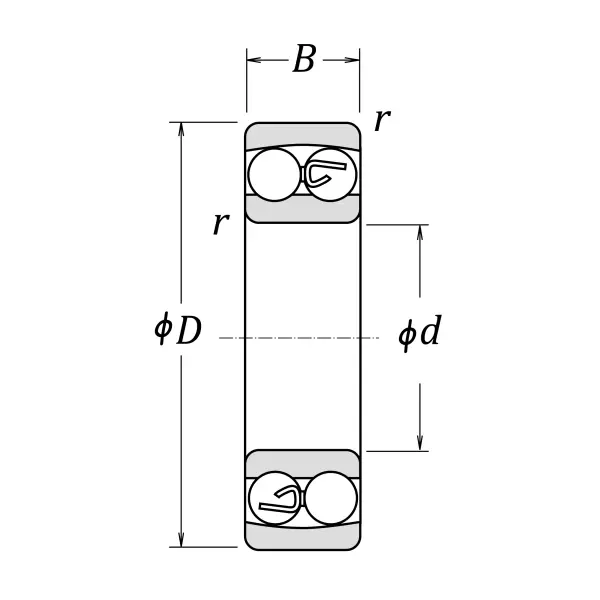

Boundary Dimensions
d
110
mm
Bore diameter
D
200
mm
Outside diameter
B
53
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
135000
N
Basic dynamic load rating
C0r
51500
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3400
min-1
Oil-bath lubrication
da (min.)
121
mm
Diameter of shaft abutment
Da (max.)
189
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet

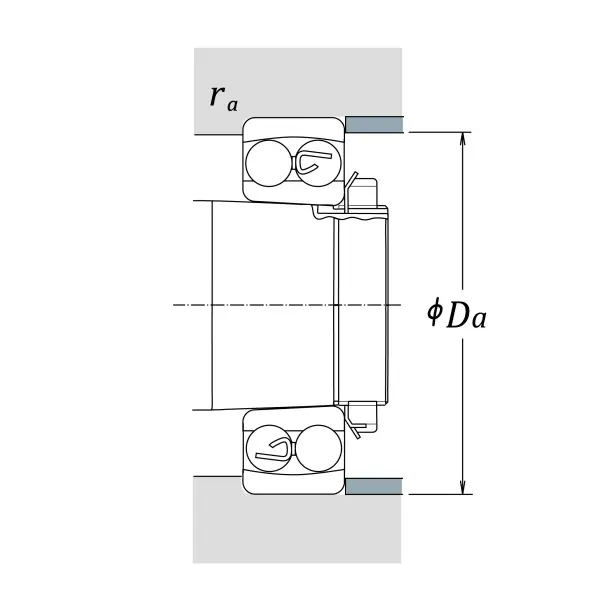

Abutment and Fillet Dimensions
e
0.28
Constant
Y2
3.5
Axial load Factors
Y3
2.2
Axial load Factors
Y0
2.3
Axial load Factors
