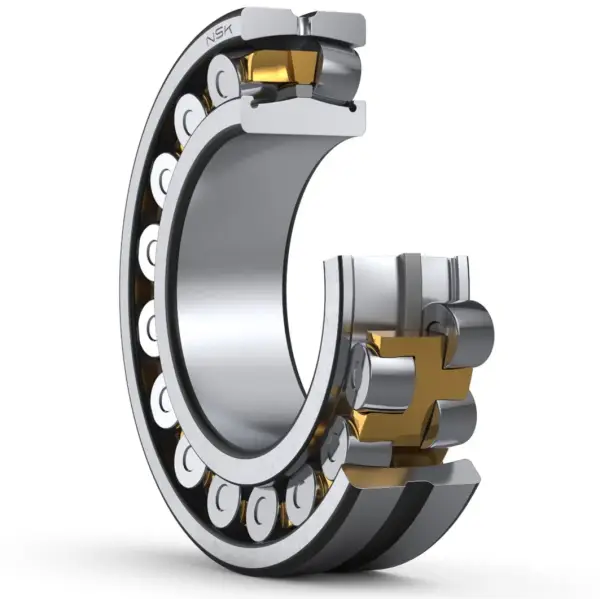

NSK 22232CAME4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22232CAME4

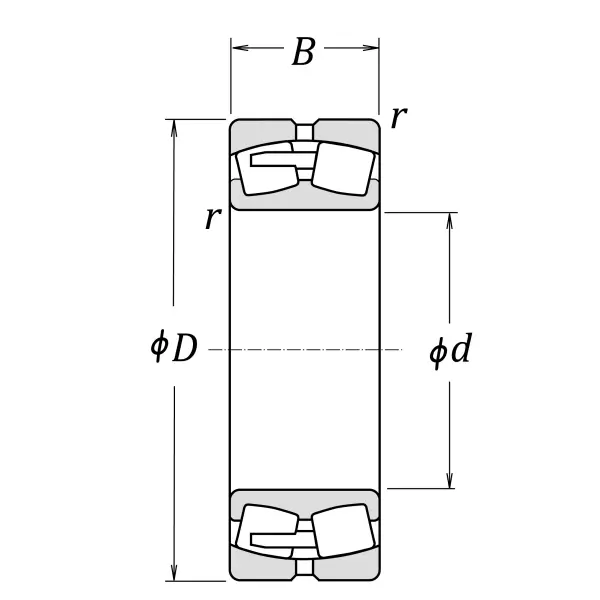

Boundary Dimensions
d
160
mm
Bore diameter
D
290
mm
Outside diameter
B
80
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
1140000
N
Basic dynamic load rating
C0r
1320000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2200
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
2800
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1200
min-1
Grease lubrication
Oil (Oil-bath)
1500
min-1
Oil-bath lubrication
da (min.)
174
mm
Diameter of shaft abutment
Da (min.)
255
mm
Diameter of housing abutment
Da (max.)
276
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.26
Constant
Y2
3.8
Axial load Factors
Y3
2.6
Axial load Factors
Y0
2.5
Axial load Factors
