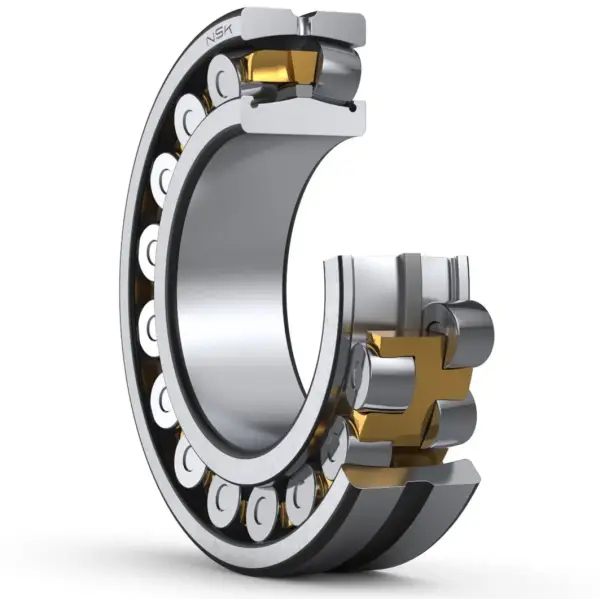

NSK 22236CAME4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22236CAME4

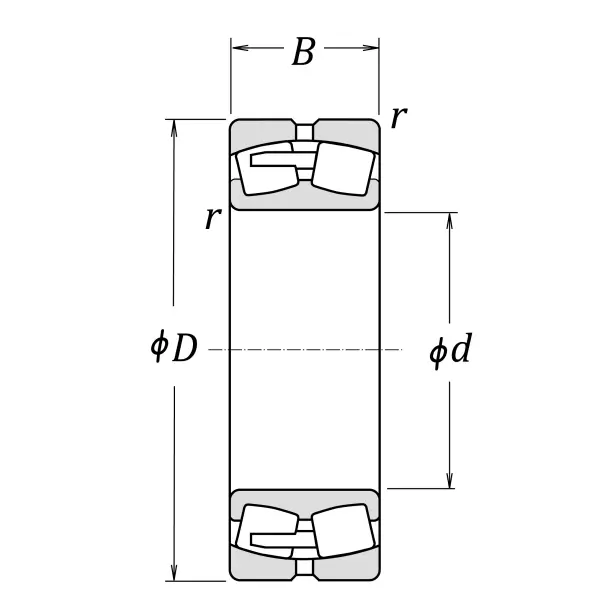

Boundary Dimensions
d
180
mm
Bore diameter
D
320
mm
Outside diameter
B
86
mm
Width
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
1280000
N
Basic dynamic load rating
C0r
1540000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
2600
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1100
min-1
Grease lubrication
Oil (Oil-bath)
1300
min-1
Oil-bath lubrication
da (min.)
198
mm
Diameter of shaft abutment
Da (min.)
278
mm
Diameter of housing abutment
Da (max.)
302
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.26
Constant
Y2
3.9
Axial load Factors
Y3
2.6
Axial load Factors
Y0
2.6
Axial load Factors
