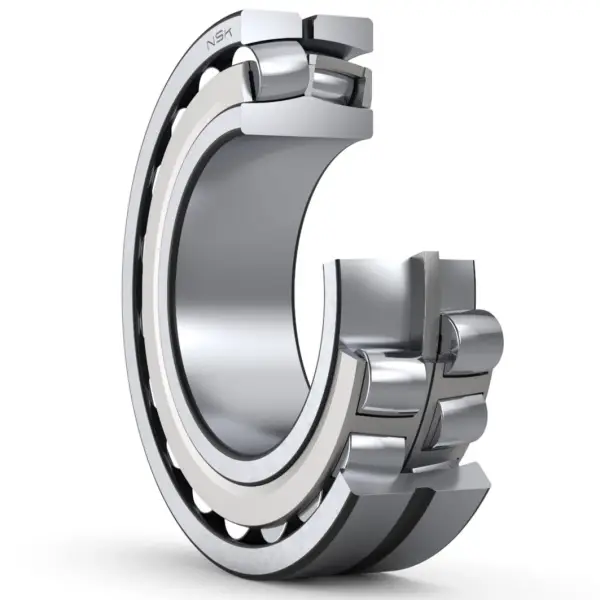

NSK 22236CDKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22236CDKE4

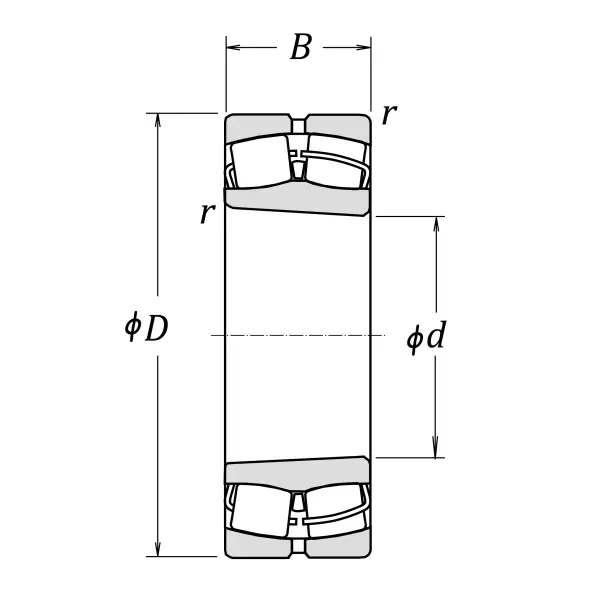

Boundary Dimensions
d
180
mm
Bore diameter
D
320
mm
Outside diameter
B
86
mm
Width
r (min.)
4
mm
Chamfer dimension
Basic Load Ratings
Cr
1280000
N
Basic dynamic load rating
C0r
1540000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
2000
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
2600
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1100
min-1
Grease lubrication
Oil (Oil-bath)
1300
min-1
Oil-bath lubrication

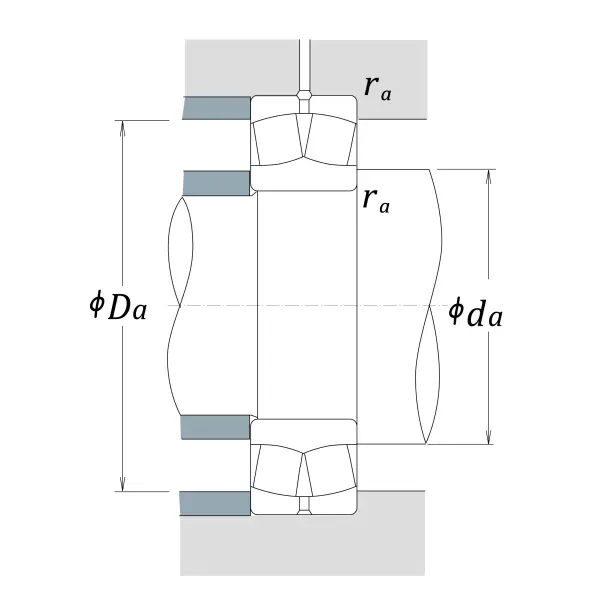

da (min.)
198
mm
Diameter of shaft abutment
da (max.)
212
mm
Diameter of shaft abutment
Da (min.)
278
mm
Diameter of housing abutment
Da (max.)
302
mm
Diameter of housing abutment
ra (max.)
3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.26
Constant
Y2
3.9
Axial load Factors
Y3
2.6
Axial load Factors
Y0
2.6
Axial load Factors
