NSK 22310EAKE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22310EAKE4

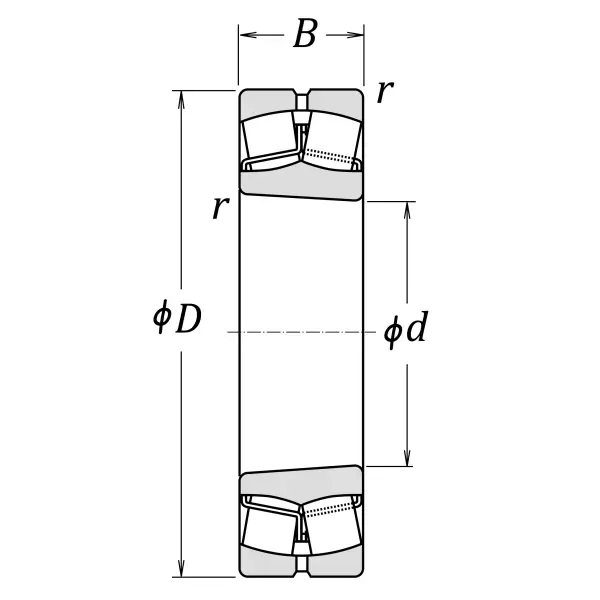

Boundary Dimensions
d
50
mm
Bore diameter
D
110
mm
Outside diameter
B
40
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
246000
N
Basic dynamic load rating
C0r
234000
N
Basic static load rating
Speeds
Thermal Speed Rating (Oil-bath)
4800
min-1
Oil-bath lubrication subject to conditions outlined in ISO 15312
Mechanical (forced-circulation oil)
7100
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
4300
min-1
Grease lubrication
Oil (Oil-bath)
5300
min-1
Oil-bath lubrication
da (min.)
60
mm
Diameter of shaft abutment
da (max.)
64
mm
Diameter of shaft abutment
Da (min.)
93
mm
Diameter of housing abutment
Da (max.)
100
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.36
Constant
Y2
2.8
Axial load Factors
Y3
1.9
Axial load Factors
Y0
1.9
Axial load Factors
