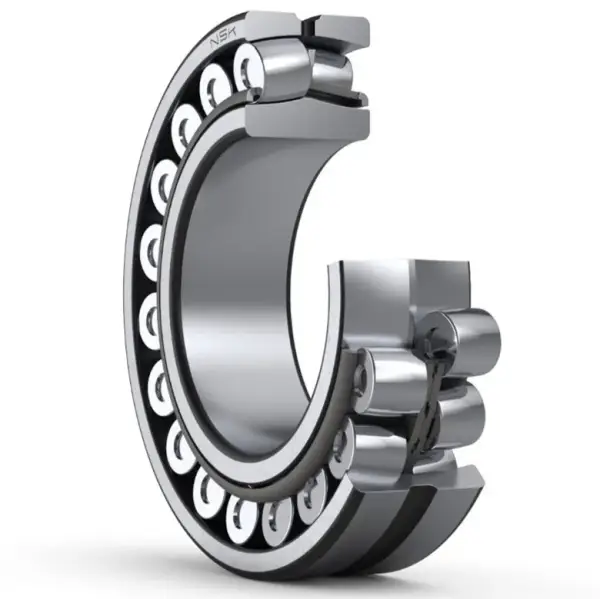

NSK 22320EAE4
Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
22320EAE4

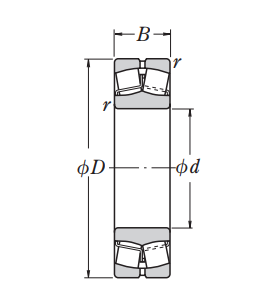

Boundary Dimensions
d
100
mm
Bore diameter
D
215
mm
Outside diameter
B
73
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
860000
N
Basic dynamic load rating
C0r
930000
N
Basic static load rating
Speeds
Mechanical (forced-circulation oil)
2400
min-1
Properly designed and controlled forced-circulation oil lubrication
Grease
1800
min-1
Grease lubrication
Oil (Oil-bath)
2400
min-1
Oil-bath lubrication

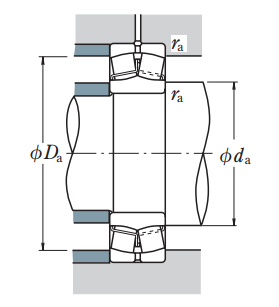

da (min.)
114
mm
Diameter of shaft abutment
da (max.)
130
mm
Diameter of shaft abutment
Da (min.)
184
mm
Diameter of housing abutment
Da (max.)
201
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.33
Constant
Y2
3
Axial load Factors
Y3
2
Axial load Factors
Y0
2
Axial load Factors
